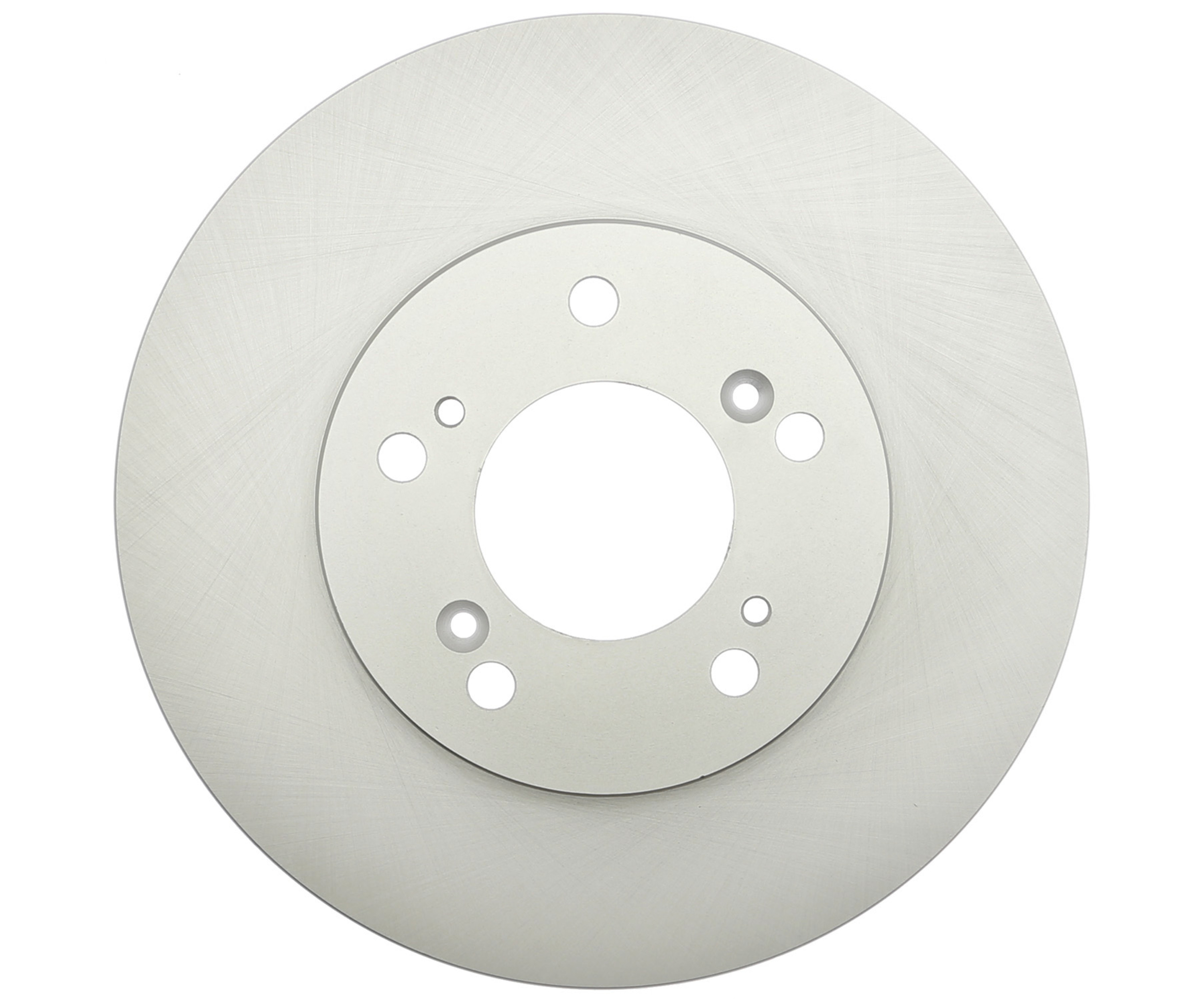

Raybestos Element3 Coated Brake Rotor
Part # 9177FZN | Line Code: RAY
brandNameImage
brandNameImage
$61.39
$61.39
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Overall Height 47
ABS Sensor Ring Included No
Discard Thickness 21
Wheel Bolt Circle Diameter 4.500
Heavy Duty Supplier Yes
Brake Rotor Diameter, Outer 11.080
Wheel Bolt Hole Diameter, Maximum 0.510
Wheel Bolt Hole Diameter, Minimum 0.500
Wheel Bolt Holes, Primary 5
Brake Rotor Type Conventional
Salability Restrictions No
Height 47.000
Mounting Bolt Hole Quantity 5
UNSPSC Code 25171715
Harmonize Code 8708.30.5030
Height, Overall 1.850
Solid Or Vented Type Rotor Vented
Center Hole Diameter, Maximum 2.766
Brake Rotor Thickness, Nominal 0.905
Material Cast Iron
Brake Rotor Casting Type Vented
Brake Rotor Thickness, Discard 0.827
Performance Level Standard Performance
Outside Diameter 281.45
Nominal Thickness 23
Center Hole Diameter, Minimum 2.763
Part Terminology Disc Brake Rotor
Features & Benefits
expand_more
Raybestos® Element3® Coated Rotors use a proprietary finishing technology to coat each rotor’s entire surface, including the cooling vanes. The full Grey Fusion 4.0® coating helps resist corrosion and significantly delays rust-induced performance issues. Our Element3® coated rotors are engineered to endure the harshest of weather conditions and deliver best-in class performance and maximized friction life.
Application Summary
expand_more
2001-1997 Honda CR-V Front, 2001-2000,1998-1997 Acura Integra Front, 2001-1997 Honda Prelude Front, 1998-1995 Honda Odyssey Front, 1995-1991 Acura Legend Front, 1998-1996 Acura RL Front, 1998-1996 Acura TL Front
