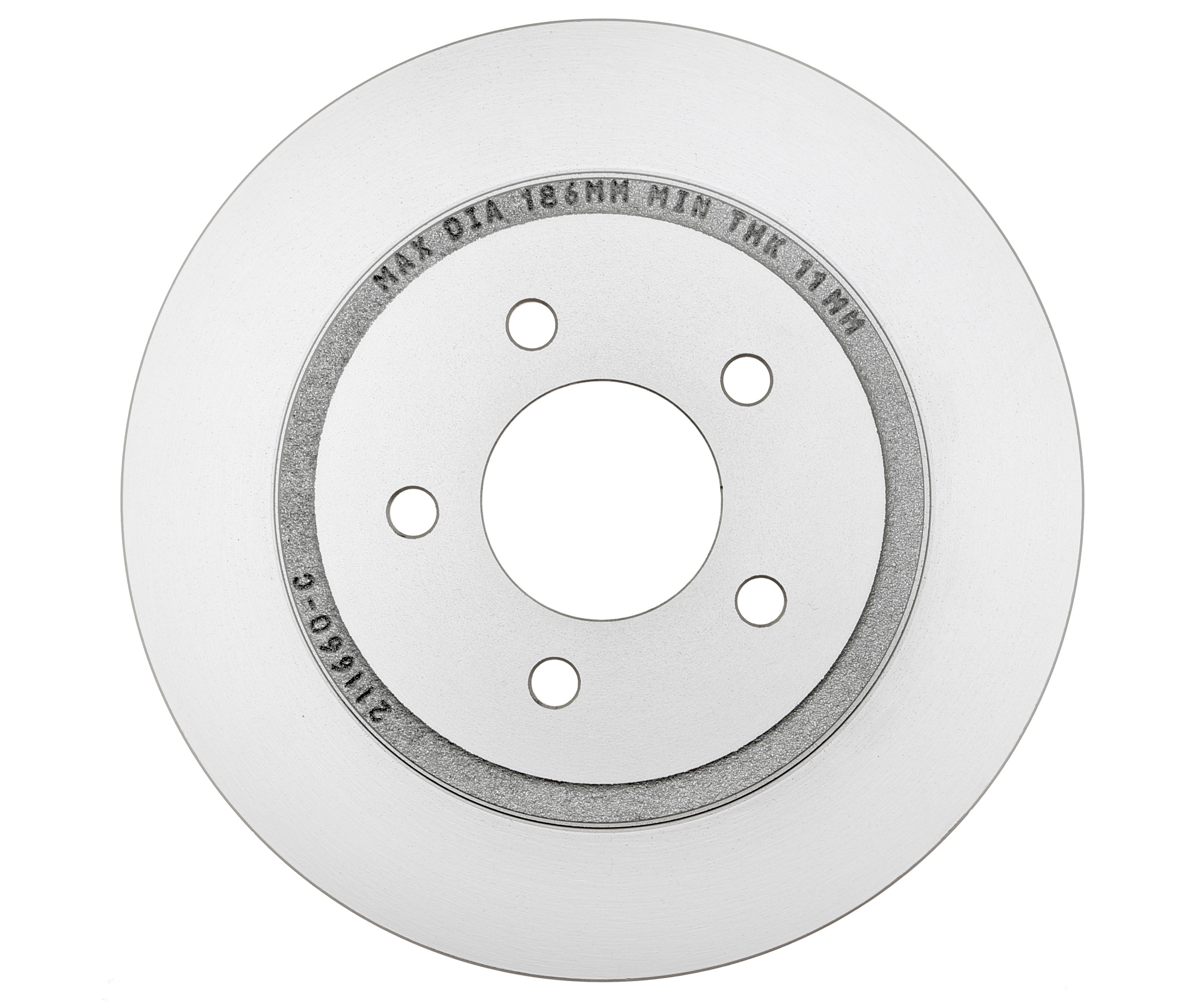

Raybestos Element3 Coated Brake Rotor
Part # 680271FZN | Line Code: RAY
brandNameImage
brandNameImage
$66.39
$66.39
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Overall Height 2.2
ABS Sensor Ring Included No
Discard Thickness 11
Wheel Bolt Circle Diameter 4.500
Heavy Duty Supplier Yes
Brake Rotor Diameter, Outer 11.885
Wheel Bolt Hole Diameter, Maximum 0.566
Wheel Bolt Hole Diameter, Minimum 4.500
Wheel Bolt Holes, Primary 5
Brake Rotor Type Drum-in-Hat
Salability Restrictions No
Height 55.900
Mounting Bolt Hole Quantity 5
UNSPSC Code 25171715
Harmonize Code 8708.30.5030
Height, Overall 2.200
Solid Or Vented Type Rotor Vented
Center Hole Diameter, Maximum 2.840
Brake Rotor Thickness, Nominal 0.472
Material Cast Iron
Brake Rotor Casting Type Vented
Brake Rotor Thickness, Discard 0.433
Performance Level Standard Performance
Outside Diameter 301.9
Nominal Thickness 12
Center Hole Diameter, Minimum 2.835
Part Terminology Disc Brake Rotor
Features & Benefits
expand_more
Raybestos® Element3® Coated Rotors use a proprietary finishing technology to coat each rotor’s entire surface, including the cooling vanes. The full Grey Fusion 4.0® coating helps resist corrosion and significantly delays rust-induced performance issues. Our Element3® coated rotors are engineered to endure the harshest of weather conditions and deliver best-in class performance and maximized friction life.
Application Summary
expand_more
2010-2005 Ford Escape Rear, 2009-2005 Mercury Mariner Rear, 2008,2006-2005 Mazda Tribute Rear
