| Overall Height | 45.75 |
| ABS Sensor Ring Included | No |
| Discard Thickness | 10 |
| Wheel Bolt Circle Diameter | 4.528 |
| Heavy Duty Supplier | Yes |
| Brake Rotor Diameter, Outer | 288.000 |
| Inside Diameter | 203.3 |
| Wheel Bolt Hole Diameter, Minimum | 14.000 |
| Wheel Bolt Holes, Primary | 5 |
| Brake Rotor Type | Conventional |
| Salability Restrictions | No |
| Height | 45.750 |
| Mounting Bolt Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
| Harmonize Code | 8708.30.5030 |
| Height, Overall | 45.750 |
| Rotor Braking Surface Machining Type | Uniform |
| Solid Or Vented Type Rotor | Solid |
| Brake Rotor Thickness, Nominal | 0.472 |
| Material | Cast Iron |
| Brake Rotor Casting Type | Solid |
| Brake Rotor Thickness, Discard | 0.394 |
| Performance Level | Standard Performance |
| Brake Rotor Diameter, Inner | 203.300 |
| Surface Type | Smooth |
| Outside Diameter | 288 |
| Nominal Thickness | 12 |
| Center Hole Diameter, Minimum | 70.700 |

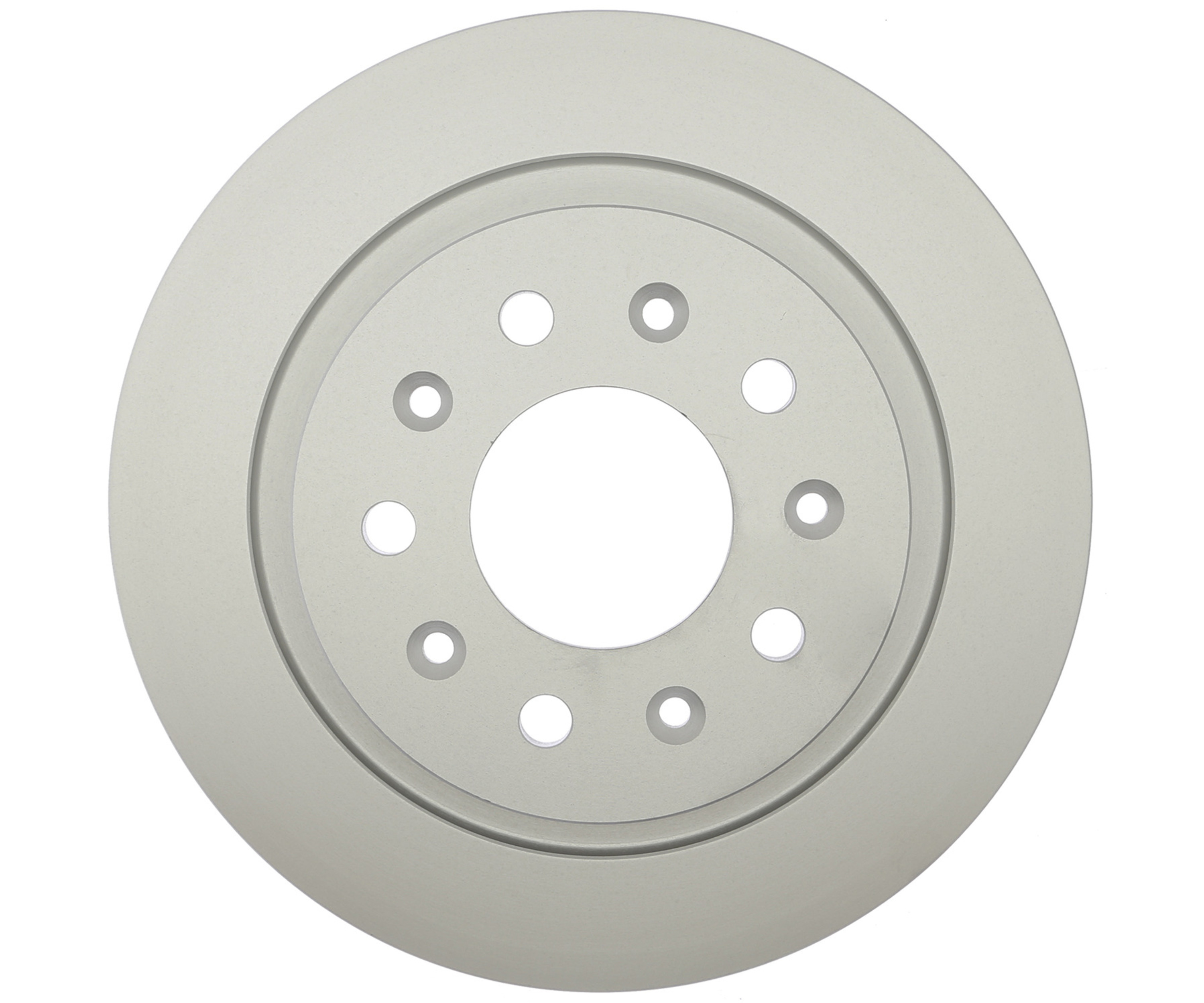

| Part Terminology | Disc Brake Rotor |
