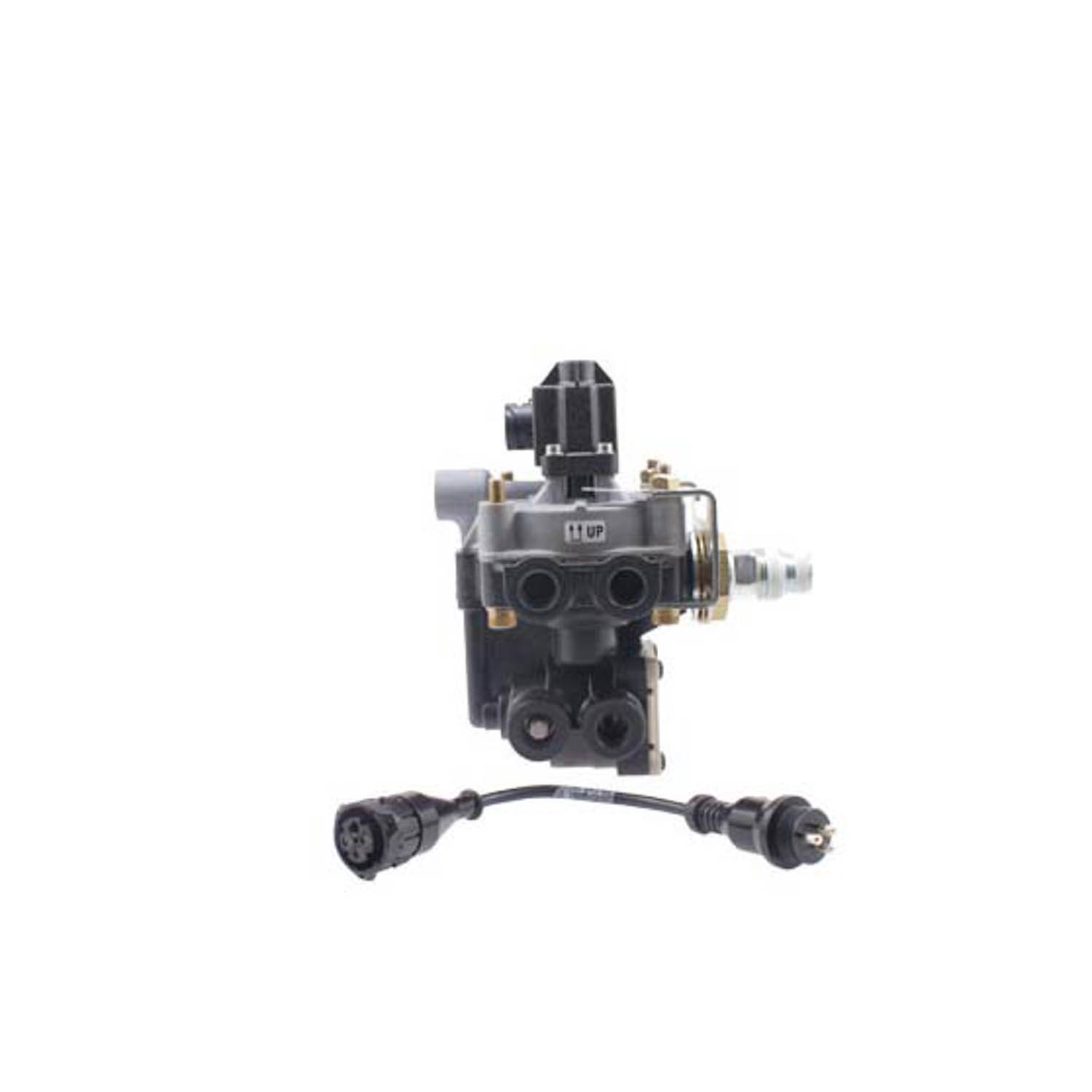

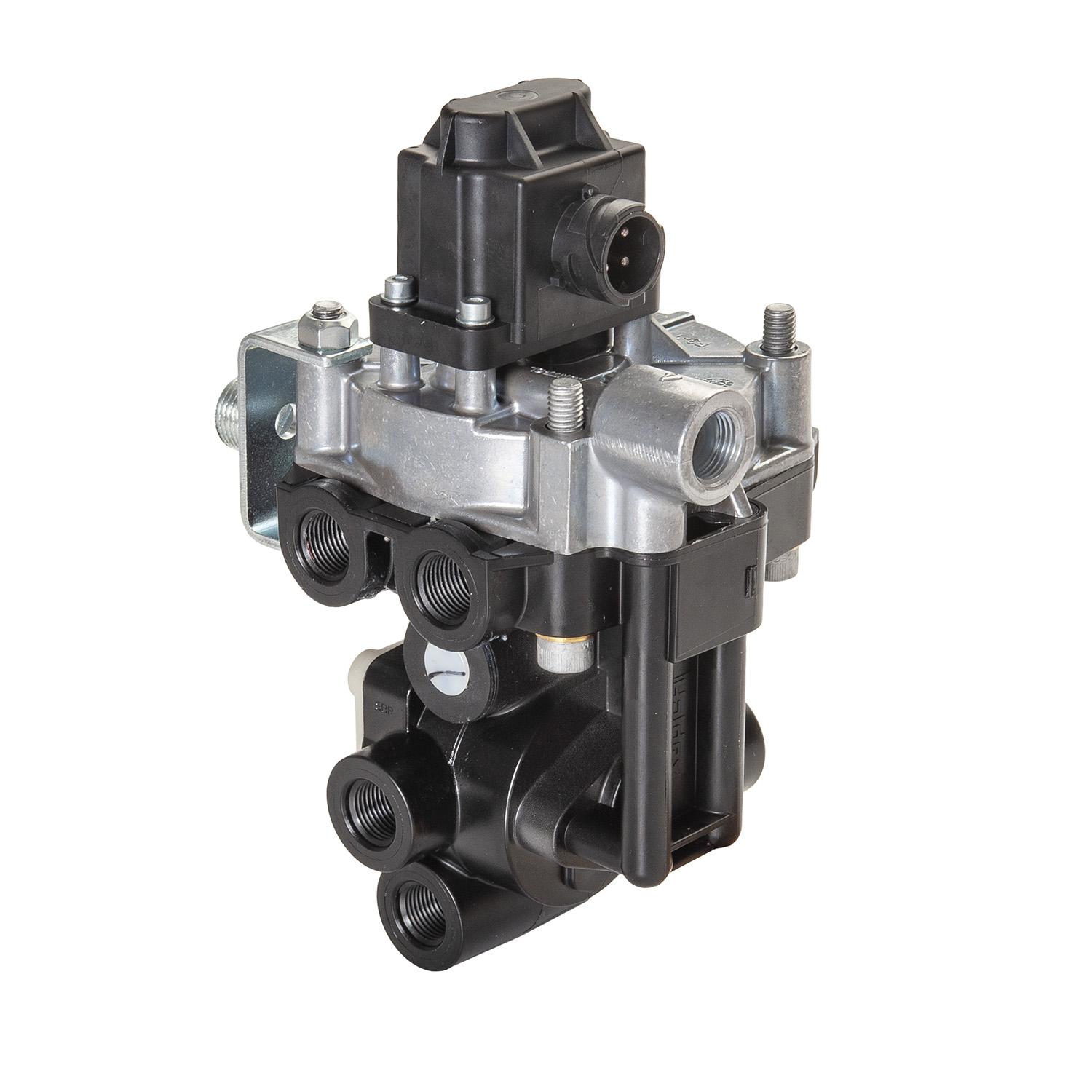

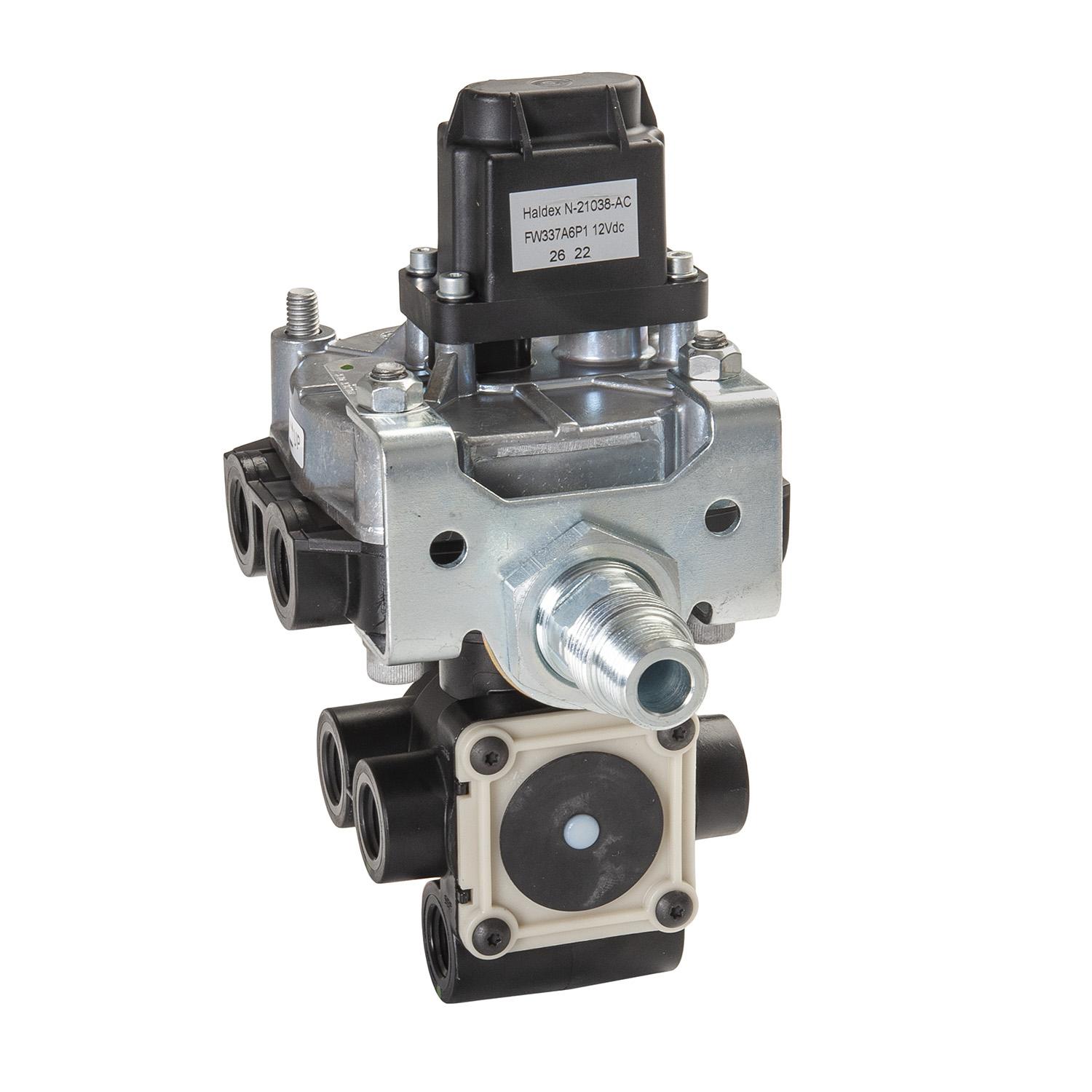

Trailer ABS Modulator System Assembly
Part # AL430624 | Line Code: HDX
brandNameImage
brandNameImage

$570.99
$570.99
error
Not Fitted

Product Details
expand_less
OEM Part Number N4306JD
Control Port .375 IN
Valve Specifications 4-Port
Supplier VMRS Code 013011068
Crack Pressure 4.0 PSI
Heavy Duty Supplier Yes
Freight Class 70
Delivery Port .375 (4)
Duty Type Heavy Duty
Spring Brake Port .375 (4)
Valve Type ABS Valve
Prop 65 Short Warning Cancer & reproductive
Prop 65 Y
Voltage 12
Reservoir Port .5 / 3/4 Nipple
Prop 65 Applies Y
Supply Port .375 (1) with Filter
Related Part A906960, AL919346, AQ40525, AQ964110
Part Terminology Trailer ABS Modulator System Assembly

Features & Benefits
expand_more
The latest generation of Haldex ABS, PLC Select platform has the right configuration that will provide you reliable performance time after time, whether using the basic ABS Relay Valve model or the patented FFABS. The Haldex ITCM (Intelligent Trailer Control Module) ABS controller is the newest product in the Haldex ABS product family. The ITCM controller embraces both the PLC (Power Line Carrier) and CAN (Controller Area Network) for communications and diagnostics. The addition of CAN protocol and expanded auxiliary allows for options such as: Roll Stability, Lift Axle Control and many others currently offered and under development for this flash upgradable ECU platform.Haldex PLC Select(R) includes the exclusive Haldex Select Low/High (SLH) protocol that allows the braking system to cycle deeper and recover faster over competitor?s systems. Select Low/High manages the braking forces between wheels with the highest and lowest rates of deceleration (depending on road surface conditions) maximizing stability while minimizing stopping distance.

Application Summary
expand_more

Replaces AL430611,Patented FFABS Valve with integral Spring Brake Control function.
