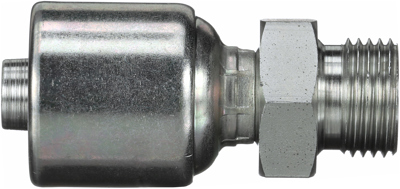

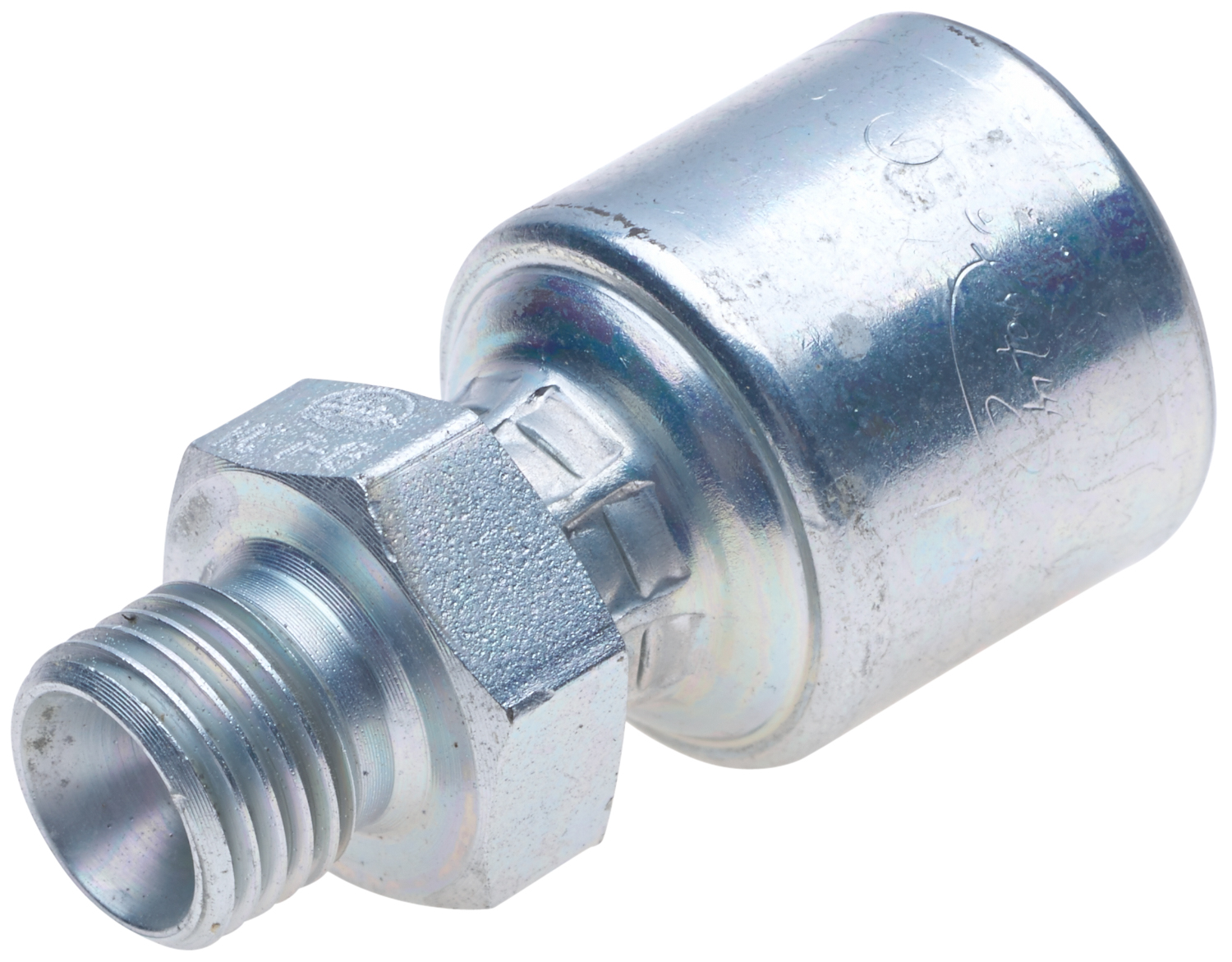

Male British Standard Parallel Pipe (MegaCrimp)
Part # G25810-0608 | Line Code: GAT
brandNameImage
brandNameImage
$33.49
$33.49
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Coupling Description MegaCrimp Male British Standard Parallel Pipe
Cut Off (in) - C 1.26
Hose Inside Diameter (mm) 9.5
Seal Type Mated Angle w/O-Ring
Heavy Duty Supplier Yes
Seated Angle 30
Hose Inside Diameter (in) .375
Termination British
Thread Size 1/2-14
Gender Male
Hose Recommendation Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Seat Angle 30
Stem Hex (mm) - H1 27
Bent Tube Angle Straight
Length 60
Inside Diameter 9.5
O-Ring Location On Female w/Inverted Nose Seat
Length (in) 2.36
Swivel No
Length (MM) 60
Alliance Keywords hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement
Cut Off (mm) - C 32.1
Industrial Description 6G-8MBSPP
Part Terminology Hydraulic Coupling / Adapter
Features & Benefits
expand_more
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
