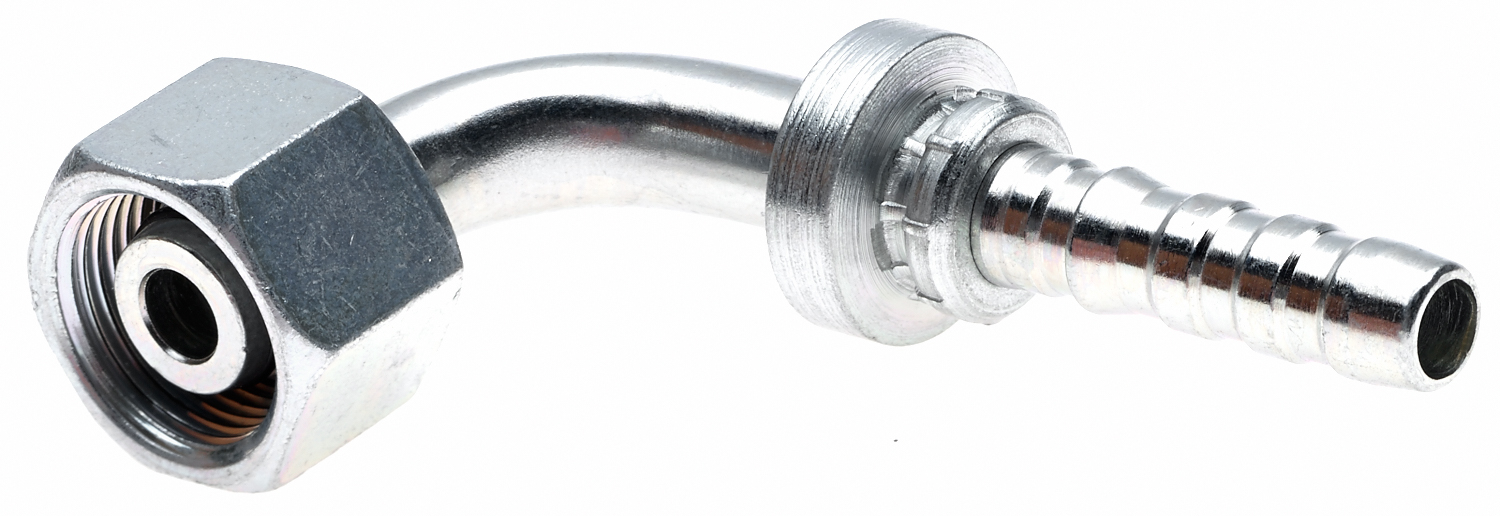

Female DIN 24 Cone Swivel-Hvy Series with O-Ring-90 Bent Tube (GlobalSpiral)
Part # G20730-1630 | Line Code: GAT
brandNameImage
brandNameImage
$191.99
$191.99
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Coupling Description GlobalSpiral Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring - 90 Bent Tube
Cut Off (in) - C 3.72
Hose Inside Diameter (mm) 25.4
Heavy Duty Supplier Yes
Hose Inside Diameter (in) 1
Drop Length 76
Thread Size M42X2.0
Drop (in) - T 2.99
Hose Recommendation All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
Nut Hex (mm) - H2 50
Length 5.81
Inside Diameter 1
Length (in) 5.81
Drop (mm) - T 76
Length (MM) 147.6
Outside Diameter 30
Alliance Keywords hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement
Tube Outside Diameter (mm) - A1 30
Cut Off (mm) - C 94.6
Industrial Description 16GS-30FDHORX90
Part Terminology Hydraulic Coupling / Adapter
Features & Benefits
expand_more
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. Nut Hex per ISO Draft International Standards 12151-2. MGS Couplings for use with MC4-20 Crimper Only.
