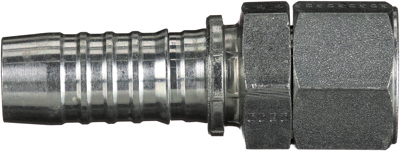

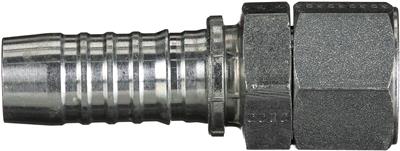

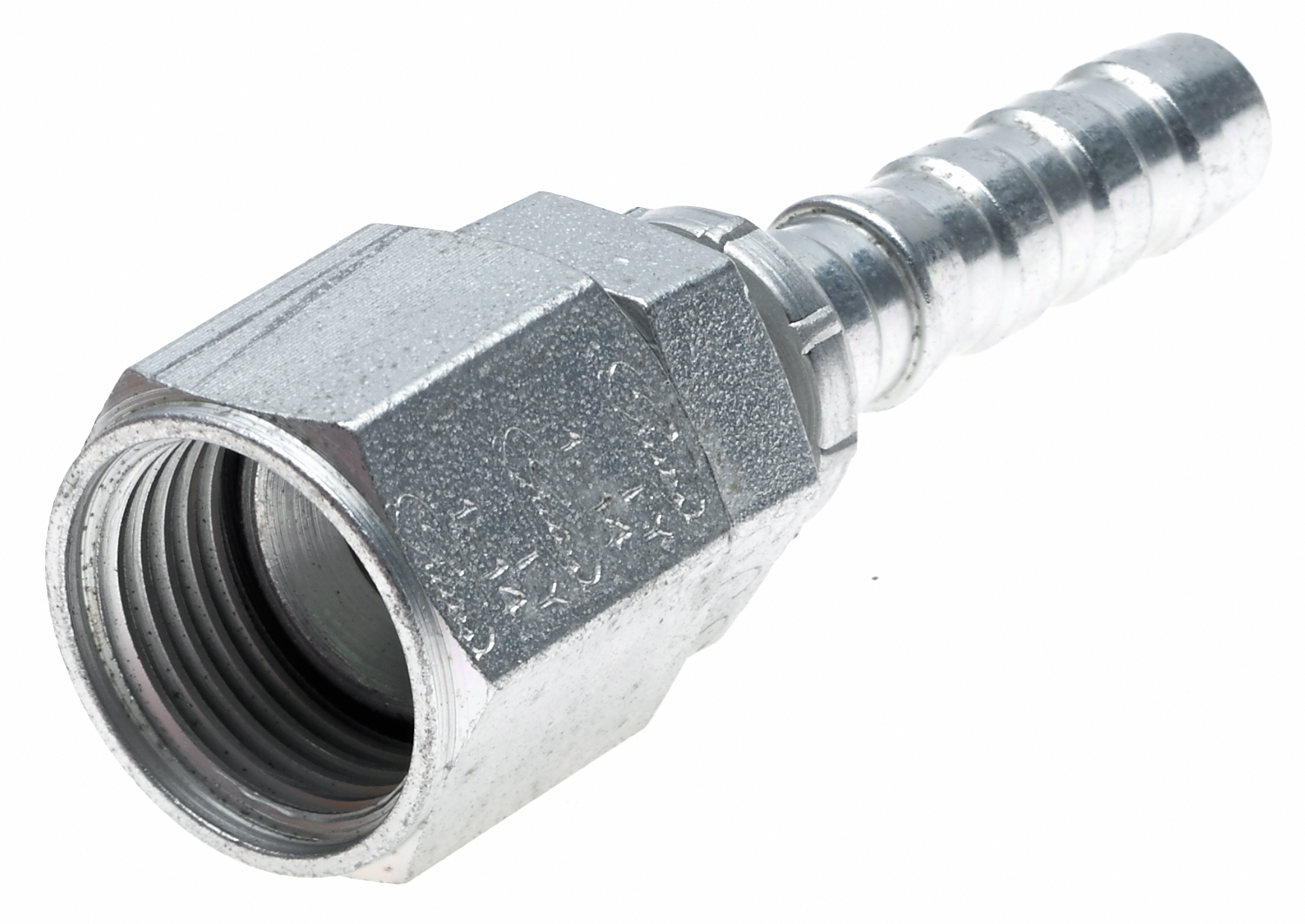

Female JIC 37 Flare Swivel (GlobalSpiral)
Part # G20170-2020 | Line Code: GAT
brandNameImage
brandNameImage
$87.49
$87.49
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Coupling Description GlobalSpiral Female JIC 37 Flare Swivel
Cut Off (in) - C 2.56
Hose Inside Diameter (mm) 31.8
Nut Hex (in) - H2 2
Heavy Duty Supplier Yes
Hose Inside Diameter (in) 1.25
Thread Size 1 5/8-12
Hose Recommendation All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
Length 5.29
Stem Hex (in) - H1 1.875
Inside Diameter 31.8
Length (in) 5.29
Length (MM) 134.4
Alliance Keywords hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement
Cut Off (mm) - C 64.9
Industrial Description 20GS-20FJX
Part Terminology Hydraulic Coupling / Adapter
Features & Benefits
expand_more
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system.
